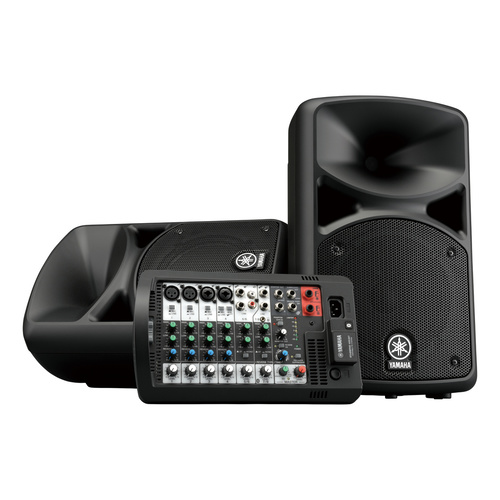

The Ultimate All-in-One Portable PA System

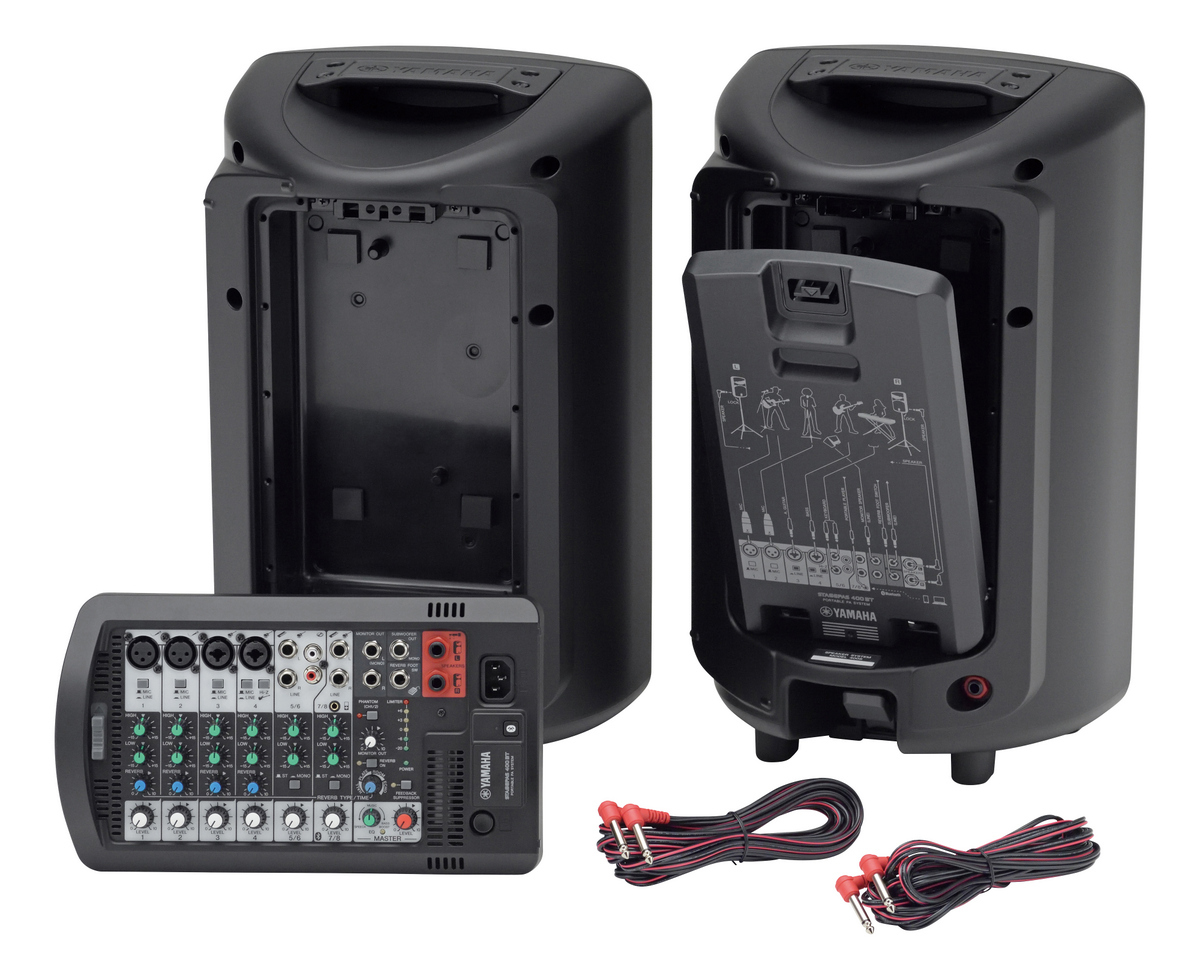

The STAGEPAS is your go-anywhere sound solution—compact and lightweight enough to carry by hand. This all-in-one PA system includes two speakers, a detachable mixer, speaker cables, and a power cord—all neatly packaged for maximum portability. No roadie? No problem. STAGEPAS is designed for anyone who needs pro-quality sound without the hassle.
Fast Setup, Effortless Operation
With its intuitive design, STAGEPAS is ready to go in seconds. Even users with no prior PA experience can be up and running—and sounding great—in under a minute.
Versatile for Any Occasion
From gigs and parties to corporate events and presentations, STAGEPAS adapts to a wide range of environments and applications with flexible PA and monitoring configurations.
Mix It. Nail It.
Professional sound at your fingertips with intuitive features that keep your mix dialed in.
Bluetooth® Wireless Streaming
Stream audio wirelessly from your smartphone or tablet. Whether it’s backing tracks, background music, or media playback for events, STAGEPAS-BT models make it easy to set the tone.
SPX Digital Reverb
Add studio-quality reverb with a single knob. Choose from four reverb types and dial in the perfect amount of effect for vocals or instruments.
1-Knob Master EQ™
Shape your entire mix instantly. Whether you're speaking, performing live, or cranking the bass, this smart EQ makes it easy to adapt your sound to the space.
Automatic Feedback Suppression
No more painful squeals. This smart function detects and eliminates feedback with the press of a button—professional sound made simple.
Individual Channel EQ
Fine-tune each input. The STAGEPAS 400BT features a 2-band EQ per channel, while the 600BT includes a 3-band EQ with mid-range control—ideal for vocalists and acoustic performers.
Hi-Z Switch
Plug in passive pickups—like acoustic-electric guitars—without a DI box. Enjoy crystal-clear sound with minimal distortion.
Switchable Stereo/Mono Inputs
Need more flexibility? Convert stereo inputs into two mono channels to accommodate a wider range of gear and setups.
Phantom Power
Power condenser mics directly from the mixer. No extra gear required, and no worries about losing charge mid-performance.
Optional Reverb Footswitch
For hands-free control, connect a footswitch to toggle reverb on/off—perfect for MCs, speakers, and solo performers.
Monitor & Subwoofer Outputs
Expand your setup by connecting to Yamaha’s DBR, DXR, or DSR powered speakers. Add a DXS Series subwoofer for deep, powerful bass—plug in, and the system automatically adjusts with a high-pass filter.
Crank It With Confidence
Power, clarity, and durability—built for the big moments.
More Power, More Performance
With 680W (600BT) and 400W (400BT) of power, STAGEPAS can handle everything from small gatherings to larger venues with ease and authority.
Even Sound Coverage
Custom speaker components deliver consistent, high-quality sound across a wide area—ensuring every listener gets the same great experience.
Smart DSP for Reliable Sound
Advanced digital signal processing keeps your audio clear and clean at any volume. Built-in limiter circuits protect your gear, so you can push the system without worry—show after show.
-
System
System Type Powered mixer with 2 passive speakers Maximum SPL (*Maximum SPL) 125dB SPL / speaker Frequency Range (-10 dB) 55Hz - 20kHz Power Consumption 30W (Idle), 70W (1/8 Power) Power Requirements 100V - 240V 50Hz/60Hz Dimentions (W x H x D) Speaker 289x472x275mm, Mixer 308x180x116mm Net Weight 17.8kg / 39.2lbs (2 x Speaker 7.5kg + Mixer 2.8kg) Powered Mixer

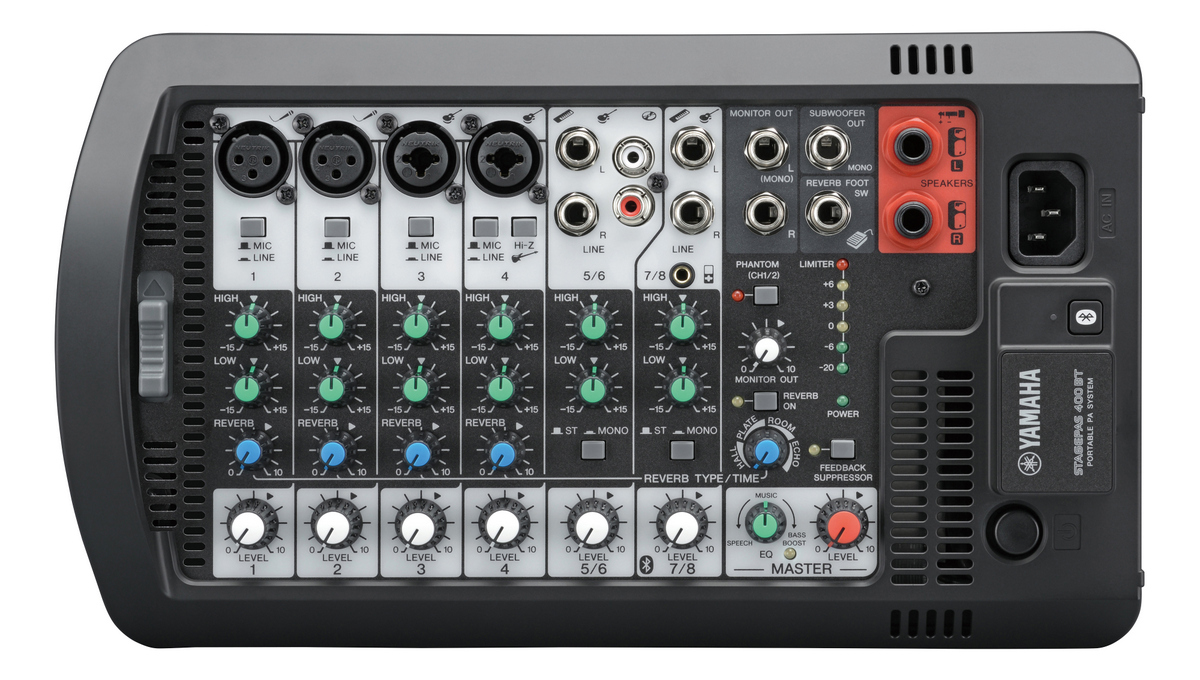

Mixer Mixing channels 8 Analog inputs 4 mono mic/line + 4 mono / 2 stereo line Digital inputs USB Audio IN: iPod/iPhone exclusive Channel EQ 2-band (HIGH Shelving: 8kHz, LOW Shelving: 100Hz) Channel functions Hi-Z switch: CH4, ST/MONO switch: CH5/6-7/8 Digital effects SPX digital reverb (4 program, parameter control) Output processing Feedback suppressor, 1-Knob Master EQ™ Phantom power +30V (CH1, 2) Outputs SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF Control and others Reverb foot switch Built-in Amplifiers Power Rating (Dynamic) 400W (200W + 200W) Power Rating (Continuous) 360W (180W + 180W) Speaker
Type Two-way bass-relfex speakers Transducers LF: 8” (20cm) cone, HF: 1” (2.54cm) voice coil compression driver Coverage Angle (Horizontal x Vertical) 90° x 60° Floor Monitor Angle 50° Handle 1 x Top Pole socket 34.8-35.2mm pole socket with StageLok™
